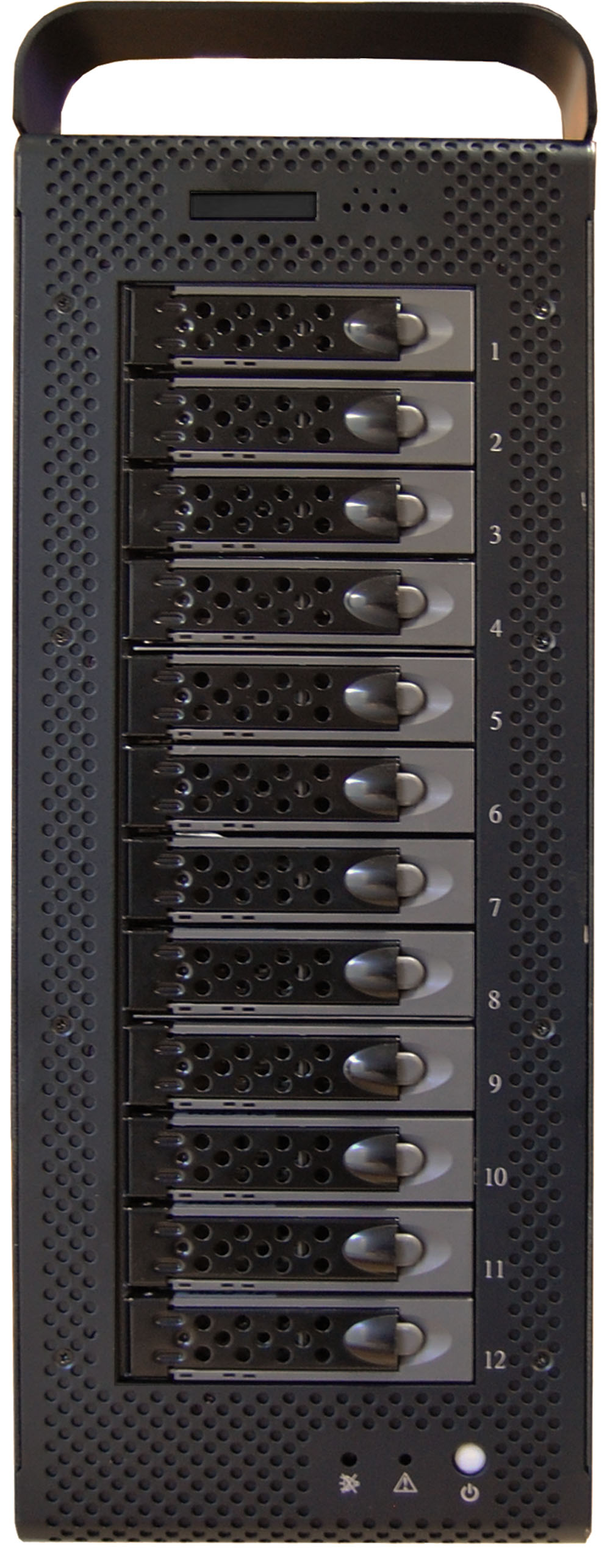

12 Bay Expander RAID Tower
Black Series |
|
|
|
|
The
CineRAID EditPRO X Series allows our customers the
ability to expand there storage capacity as needed.
Additional storage capacity becomes necessary as
your business grows and our system provides an easy
expansion of data simply by adding a couple key
components. The EditPRO X will achieve your
current data storage needs and allow you to add more

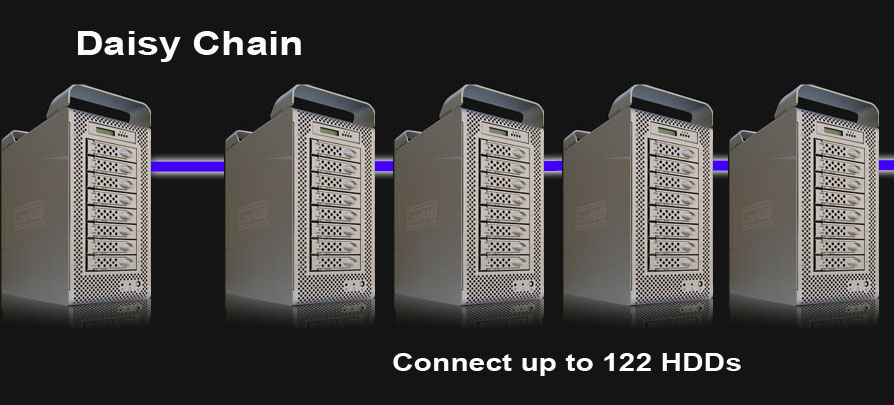

storage as you need it. The EditPRO
Xpander can expand up to 122 Drives or eight
enclosures, that's a maximum of 366TB of storage!!!..
The CineRAID EditPRO
comes with Areca field
proven RAID Technology,
offering the highest
level of data protection
and performance, keeping your
workflow uninterrupted
when it matters the
most. If a drive fails
in RAID 5 protected
mode, you can sustain a
failed drive without
losing any data and
allows you to continue
to operate. In RAID 6,
it can sustain up to 2
concurrent drive
failures without losing
your important data.
CineRAID allows several
ways for user to
conveniently monitor and
configure the RAID
volumes and hardware.
Our intuitive GUI
includes browser support which allows user to
identify the status of
each individual volumes
as well as drives and
make desired changes. (S.M.A.R.T
supported)
To be notified in
real-time when drive
failures occurred, you
can setup email alerts
to your smart phone
which will send you
email notification
whenever there are
changes in your RAID
volume status.
Engineered
for Performance, Reliability,
Capacity, and Ease of use out of
the box. Optimized performance
in MAC or PC environments. Ideal
for your HD projects, large
media files, databases, photos
or audio files, The EditPRO X is
ready to work for you.
|
|
 |
|
|
|
|
|
Click on Image to
Enlarge |
|
|
|
Model |
Description |
MSRP |
|
CR-T012EB |
12 Bay Expander Tower Only |
Call For Quote |
|
CR-T12EBX |
12 Bay Expander Tower with PCIe 2.0 6G RAID Card |
Call For Quote |
|
CR-T12EBX-12TB |
12 Bay Expander Tower with PCIe 2.0 6G Card -
12x 1TB
Drives |
Call For Quote |
|
CR-T12EBX-24TB |
12 Bay Expander Tower with PCIe 2.0 6G Card -
12x 2TB
Drives |
Call For Quote |
|
CR-T12EBX-36TB |
12 Bay Expander Tower with PCIe 2.0 6G Card -
12x 3TB
Drives |
Call For Quote |
|
|
 |
COOLING |
|
Each
whole enclosure is designed for
maximum airflow and proper cooling
in mind. The front ventilation holes
draw cool air in, while exhausting
warm air out the back. This high
cooling air flow system is critical
to achieve maximum performance and
reliability of the components.
Built in temperature monitors are
constantly detecting for any
un-healthy rise in heat or fan
failures, and will alert you of the
problem.
|
 |
|
 |
QUIET
FAN DESIGN |
|
Two 120mm fluid dynamic bearing fans which
are designed specially
for maximum air flow
with minimal sound. Perfect for low
noise studio environments. Fan speed
can also be monitored through the
RAID controller GUI and will
immediately alert if any fan
failures arise.
|
|
|
|
 |
POWER SUPPLY |
|
80plus
Active PFC power supply exceeding
specifications of 80% or greater
energy efficiency. The active PFC
(Power Factor Correction) which
allows for power distribution to
operate at its maximum efficiency by automatically correcting the
power factor, which ultimately leads
to an improved stability and more
reliable power supply.
|
|
|
 |
SECURE CONNECTION |
|
Included in all our enclosures are
SFF-8088 Mini SAS cables for a safe
and secure connection between the
RAID card and enclosure. The fixed
latch cable design helps provide a
stable connection and protection
against accidental interruptions
during your workflow. This cable
will not disconnect unless you do
so. |
|
|
 |
CASE SPECIFICATIONS |
| |
Drive
Bays:
Enternal Connectors:
Demensions / Weight:
-
T12: 19.5''(H) x 7''(W) x
17''(D)
-
25lbs (without drives)
Power Supply:
-
500w Active PFC, 50/60Hz, 100-240v
- 80 Plus Rated
-
Quiet Ball Bearing Fan (x1)
Environmental Requirements:
-
Operation Temprature: 0~60
-
Storage Temperature: -20~70
-
Operation Humidity: 5%~85%,
non-condensing
-
Storage Humidity: 5%~95%
Monitor Indicators:
-
LED and
Audible Alert - Fan
Failure/Over Temperature
-
LCD Display for status
indication
Chassis Fan:
-
2x 120mm fluid dynamic bearing
fans
-
Rotational Speed: 1200 RPM
-
Maximum Airflow: 49 CFM
-
Noise level: 22 dBA
|
|
|
 |
RAID CONTROLLER
SPECIFICATIONS |
| |
Features:
-
Dual Core RAID-on_Chip (ROC) 800
Mhz Processor
-
PCIe 2.0 (x8) 6G SATA/SAS RAID
Controller (Dual External Ports)
-
1GB DDR3-1333 ECC Cache
-
Supports RAID 0,1,1E,3,5,6,10
and JBOD
-
Multiple Adapter Support
-
Multiple RAID Selection and
Volume
-
Array Roaming
-
Online RAID level/stripe size
migration
-
Online RAID capacity expansion
-
Instant availability and
background initialization
-
Auto drive insertion/removal
detection and rebuild
-
Greater than 2TB support per
volume
-
Supports S.M.A.R.T., NCQ and OOB
staggered spin up
-
Support (MAID) Massive Array of
Idle Disks (Spin down of disk
when not in use)
Management & Monitor:
-
Browser-based management utility
(GUI)
-
Supports command line interface
(CLI)
-
Hot
Key boot up BIOS RAID Manager
(Windows only)
-
SMTP support for email
notification
-
SNMP support for remote
notification
-
RAID status indication through HDD activity/fault
LED with audible alarm
Dimensions:
-
169.5 x 64.4 mm (Low Profile)
OS Support
-
Windows 2000, XP, Server 2003, Vista,
Window 7
-
Mac OS X Tiger 10.4.x , Leopard
10.5.X, Snow Leopard 10.6.x and
Lion 10.7.x / EFI BIOS Support
-
Linux
-
FreeBSD
-
VMware
-
Solaris 10/11 x86/x86_64
|
|
|
Hard
Drive Compatibility List |
|
SATA
Drives |
|
Seagate
Constellation ES |
500 GB |
ST500NM0011 |
|
Seagate
Constellation ES |
1 TB |
ST1000NM0011 |
|
Seagate
Constellation ES |
2 TB |
ST32000644NS, ST2000NM0011 |
|
Seagate
Constellation ES |
3 TB |
ST33000650NS |
|
WD RE4 |
500GB |
WD5003ABYX |
|
WD RE4 |
1 TB |
WD1003FBYX |
|
WD RE4 |
1.5 TB |
WD1503FYYS |
|
WD RE4 |
2 TB |
WD2003FYYS |
|
WD
VelociRaptor |
150 GB |
WD1500BLHX, WD1500HLHX |
|
WD
VelociRaptor |
300 GB |
WD3000BLHX , WD3000HLHX |
|
WD
VelociRaptor |
450 GB |
WD4500NLHX, WD4500HLHX |
|
WD
VelociRaptor |
600 GB |
WD6000BLHX, WD6000HLHX |
|
Hitachi
Ultrastar 7K3000 |
2 TB |
HUA723020ALA640, HUA723020ALA641 |
|
Hitachi
Ultrastar 7K3000 |
3 TB |
HUA723030ALA640, HUA723030ALA641 |
|
SAS
Drives |
|
Seagate |
500 GB |
ST500NM0001 |
|
Seagate |
1 TB |
ST31000424SS, ST1000NM0001 |
|
Seagate |
2 TB |
ST32000444SS, ST2000NM0001 |
|
Seagate |
3 TB |
ST33000650SS |
|
Hitachi
Ultrastar 7K3000 |
2 TB |
HUS723020ALS640, HUS723020ALS641 |
|
Hitachi
Ultrastar 7K3000 |
3 TB |
HUS723030ALS640, HUS723030ALA641 |
|
|
 |
|
|
|
