Direct Attached 6G SAS RAID Storage Solution - (Non Expandable)


The CineRAID EditPRO is built around and designed with Areca field proven RAID Technology, offering the highest level of data protection and performance,  keeping your workflow uninterrupted when it matters the most. The EditPRO solution arrives pre-configured in RAID 5, which can sustain a failed drive without losing any data, while still allowing you to continue to operate. Our intuitive GUI (Graphical User Interface) is accessable through your web browser for ease of use  and allows the user to identify the status as well as make desired changes if needed. Individual drive LED lights alert you in real-time when and if a drive failures occurs. In addition, you can setup email alerts to notify you whenever there are changes in your RAID volume status or failures. The Areca EditPRO is completely reliable and perfect for data intensive contect creation, backup or massive desktop storage.

Product Info Sheet

(Click on Image to Open )


(Click on Image to Enlarge)

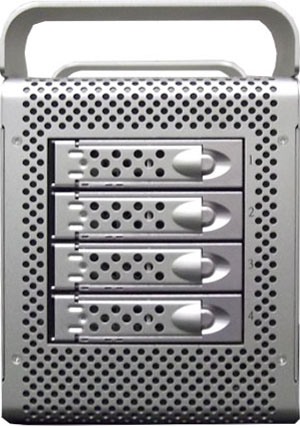

Each whole enclosure is designed for maximum airflow and proper cooling in mind. The front ventilation holes draw cool air in, while exhausting warm air out the back. This high cooling air flow system is critical to achieve maximum performance and reliability of the components. Built in temperature monitors are constantly detecting for any un-healthy rise in heat or fan failures, and will alert you of the problem.

We use  quiet internal ball bearing fans which are designed specially for maximum air flow with minimal sound. Perfect for low noise studio environments. Fan speed can also be monitored through the RAID controller GUI and will immediately alert if any fan failures arise.

The EditPRO T04 utilizes an 80plus Active PFC power supply exceeding specifications of 80% or greater energy efficiency. The active PFC (Power Factor Correction) which allows for power distribution to operate at its maximum efficiency by automatically correcting the power factor, which ultimately leads to an improved stability and more reliable power supply.
We use a high bandwith 6G SAS cable with latched connectors for a safe and secure connection between the RAID card and enclosure. This design helps provide a stable connection during data transfers and protection against accidental interruptions during critical workflow.

We back all our products with a 30 day money back guarantee and unlimited technical support in addition to our standard 2 Year Warranty for each EditPRO T04-X unit. The EditPRO series is assembled in the USA with the success of our customers in mind. While our products are designed to be trouble free, we realize that you may still need technical assistance from time to time, and we make it easy for you to access a real live person in our support team.


Please visit our growing list of customer testimonials, Click Here to See our current list.


  • Supports 4 independent 3/6Gb/s SATA or SAS 3.25"/2.5" Hard Drives

  • Maximum 16TB of raw storage capacity (Using 4x 4TB drives)

  • 1x Rear External MiniSAS  (SFF-8088) Host Connection to RAID Controller

  • Dimensions: 9.5"(H) x 6.5"(W) x 10"(D) (inches)

  • Weight: 10 lbs (without drives)

  • Power Supply: 200W Active PFC - 80 Plus Rated / Ball Bearing Fan (x1)

  • Audible Alert for Fan Failure/Over Temperature

  • 1x Ball Bearing Exhaust Fan

Environmental Requirements:

  • Operation Temprature: 0~60

  • Storage Temperature: -20~70

  • Operation Humidity: 5%~85%, non-condensing

  • Storage Humidity: 5%~95%




Areca ARC-1215-4x

4-Port External PCIe RAID Controller











Test Bench Specifications:

  • System: Mac Pro (Model 1,1) / 2Ghz Dual Core Intel Xeon / 3GB Memory / Mac OSX 10.6.6
  • ARC-1213-4x RAID Card (FW 1.49) Installed on Slot 4 (PCIe x4 / 2.5G)
  • 4x Seagate Constellation ES 2TB SAS Hard Drives - Model: ST320000444SS
RAID 0 RAID 3 RAID 5 RAID 5 Degraded


(Click on Image to Enlarge)
