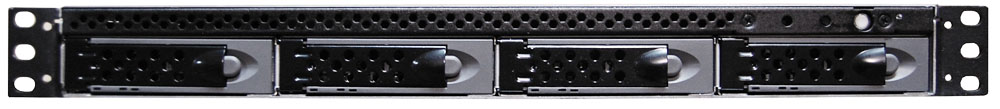

4 BAY
1U Rackmount Enclosure
Black Edition |
|
|
|
 |
|
The CineRAID EditPRO is
designed with Areca field
proven RAID Technology,
offering the highest
enterprise
level of data protection
and performance, keeping your
workflow uninterrupted
when it matters the
most. If a drive fails
in RAID 5 protected
mode, you can sustain a
failed drive without
losing any data and
allows you to continue
to operate. In RAID 6,
it can sustain up to 2
concurrent drive
failures without losing
your important data. Our intuitive GUI
(Graphical User Inerface)
includes web browser support
for ease of use which allows user to
identify the status of
each individual volumes
as well as drives and
make desired changes. (S.M.A.R.T
supported)
To be notified in
real-time when drive
failures occurred, you
can setup email alerts
to your smart phone
which will send you
email notification
whenever there are
changes in your RAID
volume status.
|
|
|
 |
|
|
|
Click on Image to
Enlarge |
|
|
|
Model |
Description |
MSRP |
|
CR-R04B |
4 Bay 1U Chassis Only |
$ 799* |
|
CR-R04BX |
4 Bay 1U Chassis with PCIe 6G Card |
$ 1,349* |
|
CR-R04BX-4TB |
4 Bay 1U Chassis with PCIe 6G Card - 4x 1TB
Drives |
Call For Quote |
|
CR-R04BX-8TB |
4 Bay 1U Chassis with PCIe 6G Card - 4x 2TB
Drives |
Call For Quote |
|
CR-R04BX-12TB |
4 Bay 1U Chassis with PCIe 6G Card - 4x 3TB
Drives |
Call For Quote |
|
|
*Pricing Based on 1 Year Warranty. An
Optional 3 Year Warranty with Advance
Replacement is also Available.
|
|
 |
|
6G
TECHNOLOGY |
|
By using a complete 6Gb/s SAS/SATA
infrastructure, it enables greater
reliability and throughput to
deliver the ultimate solution using
the latest high performance
enterprise 6G SAS/SATA drives. |
 |
 |
COOLING |
|
Each
whole enclosure is designed for
maximum airflow and proper cooling
in mind. The front ventilation holes
draw cool air in, while exhausting
warm air out the back. This high
cooling air flow system is critical
to achieve maximum performance and
reliability of the components.
Built in temperature monitors are
constantly detecting for any
un-healthy rise in heat or fan
failures, and will alert you of the
problem.
|
|
|
|
 |
POWER SUPPLY |
|
The EditPRO units utilize an 80plus
Active PFC power supply exceeding
specifications of 80% or greater
energy efficiency. The active PFC
(Power Factor Correction) which
allows for power distribution to
operate at its maximum efficiency by automatically correcting the
power factor, which ultimately leads
to an improved stability and more
reliable power supply.
|
|
|
 |
SECURE & FAST CONNECTIONS |
|
We use latched high bandwith 6G SFF-8088 Mini SAS
connectors and cables for a safe
and secure connection between the
RAID card and enclosure. This design helps provide a
stable connection during data
transfers and protection
against accidental interruptions
during critical workflow. This cable
will not disconnect unless you do
so. |
|
|
 |
CASE SPECIFICATIONS |
| |
-
Supports 4 independent 3/6Gb/s SATA or SAS
3.25"/2.5" Hard Drives
-
Maximum 16TB of raw storage
capacity (Using 4x 4TB drives)
-
1x Rear External MiniSAS (SFF-8088) Host Connection to RAID Controller
-
Dimensions: 2"(H) x 19"(W) x
16"(D) (inches)
-
Weight:
10 lbs (without drives)
-
Power Supply:
200W Active PFC - 80 Plus Rated
/
Ball Bearing Fan (x1)
-
LED and Audible Alert for Fan
Failure/Over Temperature
-
2x Ball Bearing Exhaust Fans /
2100 RPM / 41 CFM / 26 dBA
-
Lighted Power Switch
Environmental Requirements:
-
Operation Temprature: 0~60
-
Storage Temperature: -20~70
-
Operation Humidity: 5%~85%,
non-condensing
-
Storage Humidity: 5%~95%
|
|
|
 |
RAID CONTROLLER
SPECIFICATIONS
The PCIe Single Port RAID controller
is only included with the CR-R04BX
series |
| |
Features:
-
PCIe (x8) 6G SATA/SAS RAID
Controller (Single External Port
- SFF-8088)
-
512MB DDR2 ECC Cache
-
Supports RAID 0,1,1E,3,5,6,10
and JBOD
-
Multiple Adapter Support
-
Multiple RAID Selection and
Volume
-
Array Roaming
-
Online RAID level/stripe size
migration
-
Online RAID capacity expansion
-
Instant availability and
background initialization
-
Auto drive insertion/removal
detection and rebuild
-
Greater than 2TB support per
volume
-
Supports S.M.A.R.T., NCQ and OOB
staggered spin up
-
Support (MAID) Massive Array of
Idle Disks (Spin down of disk
when not in use)
Management & Monitor:
-
Browser-based management utility
(GUI)
-
Supports command line interface
(CLI)
-
Hot
Key boot up BIOS RAID Manager
(Windows only)
-
SMTP support for email
notification
-
SNMP support for remote
notification
-
RAID status indication through HDD activity/fault
LED with audible alarm
OS Support
-
Windows 2000, XP, Server 2003, Vista,
Window 7
-
Mac OS X Tiger 10.4.x , Leopard
10.5.X, Snow Leopard 10.6.x and
Lion 10.7.x
-
Linux
-
FreeBSD
-
VMware
-
Solaris 10/11 x86/x86_64
|
 |
PERFORMANCE TESTS |
| |
Test
Bench Specifications:
-
System: Mac Pro (Model 1,1) /
2Ghz Dual Core Intel Xeon / 3GB
Memory / Mac OSX 10.6.6
-
ARC-1213-4x RAID Card (FW 1.49)
Installed on Slot 4 (PCIe x4 /
2.5G)
-
4x
Seagate Constellation ES 2TB SAS
Hard Drives - Model:
ST320000444SS
|
| |
RAID 0 |
RAID 3 |
RAID 5 |
RAID 5
Degraded |
| |
 |
 |
 |
 |
| |
Click
on Image to Enlarge |
| |
|
|
|
Hardware Compatibility List |
|
SATA Hard
Drives |
|
Seagate
Constellation ES |
3 TB |
ST33000650NS |
|
Seagate
Constellation ES |
2 TB |
ST32000644NS, ST2000NM0011 |
|
Seagate
Constellation ES |
1 TB |
ST1000NM0011 |
|
Seagate
Constellation ES |
500 GB |
ST500NM0011 |
|
Hitachi
Ultrastar 7K3000 |
3 TB |
HUA723030ALA640, HUA723030ALA641 |
|
Hitachi
Ultrastar 7K3000 |
2 TB |
HUA723020ALA640, HUA723020ALA641 |
|
WD RE4 |
2 TB |
WD2003FYYS |
|
WD RE4 |
1.5 TB |
WD1503FYYS |
|
WD RE4 |
1 TB |
WD1003FBYX |
|
WD RE4 |
500GB |
WD5003ABYX |
|
WD
VelociRaptor |
600 GB |
WD6000BLHX, WD6000HLHX |
|
WD
VelociRaptor |
450 GB |
WD4500NLHX, WD4500HLHX |
|
WD
VelociRaptor |
300 GB |
WD3000BLHX , WD3000HLHX |
|
WD
VelociRaptor |
150 GB |
WD1500BLHX, WD1500HLHX |
|
SAS
Hard Drives |
|
Seagate |
3 TB |
ST33000650SS |
|
Seagate |
2 TB |
ST32000444SS, ST2000NM0001 |
|
Seagate |
1 TB |
ST31000424SS, ST1000NM0001 |
|
Seagate |
500 GB |
ST500NM0001 |
|
Hitachi
Ultrastar 7K3000 |
3 TB |
HUS723030ALS640, HUS723030ALA641 |
|
Hitachi
Ultrastar 7K3000 |
2 TB |
HUS723020ALS640, HUS723020ALS641 |
|
RAID Controllers |
|
Areca |
ARC-1212X, 1213-4x, 1221X, 1222X, 1223-8x |
|
