8 BAY PORTABLE SSD RAID TOWER - Black Series |
|
|
Media, Entertainment and
Creative professionals
are consistently looking
for solutions to
manipulate and render
massive amounts of data
faster. To help our
customers address these
issues we are

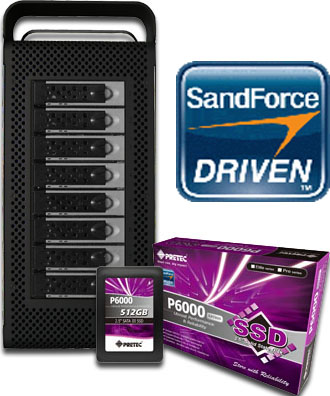

introducing the new
CineRAID 6G EditPRO SSD
series, designed to
support full 6Gb/s (SATA
III) Solid State Drives
(SSD), giving
Engineers, artists,
architects and other
professionals the needed
speed to greatly reduce
the time it takes to
access their data,
enabling them to
substantially increase
their project workload
in the same amount of
time, or simply reduce
the time it takes to
accomplish a single
project. SSD's have no
moving parts, therefore
also providing you with
the highest durability
with up to 15x more
shock resistance than
standard hard drives,
greatly reducing the
risk of drive failure
and potential data loss
from impacts, giving you
the freedom to work
wherever the job takes
you, either on set or in
the field where
conditions vary.
CineRAID has partnered
with Pretec, a proven
leader in SSD solutions
using SandForce
processor based
technology, enabling
sustained 500+MB/s
Read/Write Performance
(Single Drive), Ultra
efficient Wear Leveling
for long term
durability, and Built in
Error Correction Code (ECC)
making it the perfect
choice for our new
CineRAID 6G EditPRO SSD
turn-key solutions.
|
 |
 |

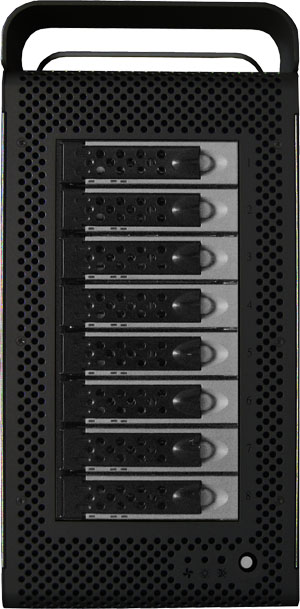

| Click on
Image to Enlarge |
|
|
|
Model |
Description |
MSRP |
|
CR-SSDT08B |
8 Bay SSD Tower Only |
$
699 |
|
CR-SSDT08BX |
8 Bay SSD Tower with PCIe 6G Card |
$ 1,299 |
|
CR-SSDT08BX-1TB |
8 Bay SSD Tower with PCIe 6G Card - 8x 128MB SSD
Drives |
Call For Quote |
|
CR-SSDT08BX-2TB |
8 Bay SSD Tower with PCIe 6G Card - 8x 256MB SSD
Drives |
Call For Quote |
|
|
 |
COOLING |
|
Each
whole enclosure is designed for
maximum airflow and proper cooling

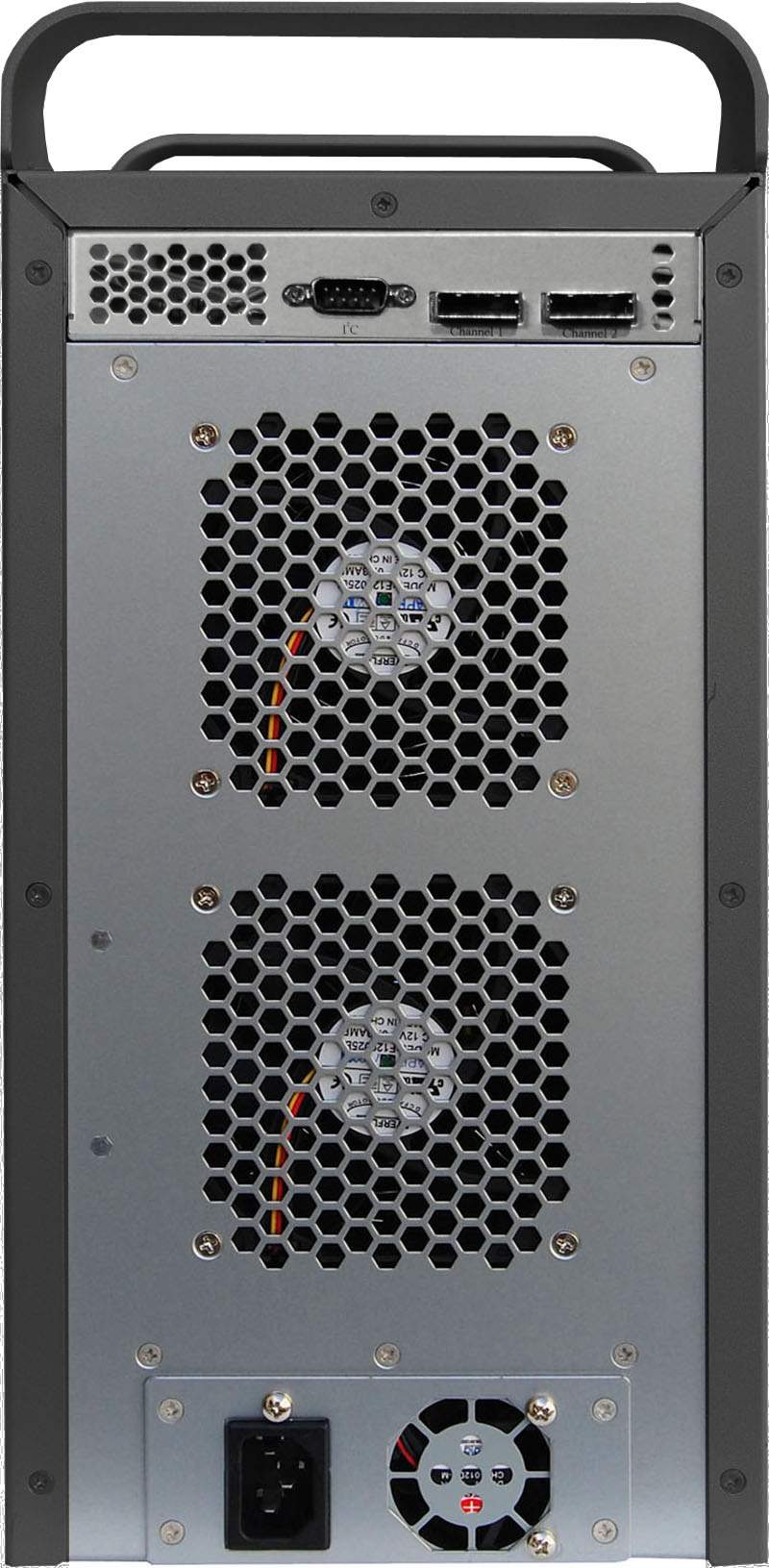

in mind. The front ventilation holes
draw cool air in, while exhausting
warm air out the back. This high
cooling air flow system is critical
to achieve maximum performance and
reliability of the components.
Built in temperature monitors are
constantly detecting for any
un-healthy rise in heat or fan
failures, and will alert you of the
problem.
|
 |
|
 |
QUIET
FAN DESIGN |
|
We use quiet internal
ball bearing fans which
are designed specially
for maximum air flow
with minimal sound. Perfect for low
noise studio environments. Fan speed
can also be monitored through the
RAID controller GUI and will
immediately alert if any fan
failures arise.
|
|
|
|
 |
POWER SUPPLY |
|
An 80plus
Active PFC power supply is used to
exceed
specifications of 80% or greater
energy efficiency. The active PFC
(Power Factor Correction) which
allows for power distribution to
operate at its maximum efficiency by automatically correcting the
power factor, which ultimately leads
to an improved stability and more
reliable power supply.
|
|
|
 |
SECURE & FAST CONNECTION |
|
We use latched high bandwith 6G SFF-8088 Mini SAS
connectors and cables for a safe
and secure connection between the
RAID card and enclosure. This design helps provide a
stable connection during data
transfers and protection
against accidental interruptions
during critical workflow. This cable
will not disconnect unless you do
so. |
|
|
 |
GUARANTEE |
|
We back all our products with a 30
day money back guarantee and
unlimited technical support in
addition to our standard 1 Year
Warranty or optional 3 Year Advanced
Warranty Plans.
Each unit is personally assembled in
the USA and built in our Chino,
California Warehouse with the
success of our customers in mind.
While our products are designed to
be trouble free, we realize that you
may still need technical assistance
from time to time, and we make it
easy for you to access a real live
person in our support team.
Please visit our growing list of
customer testimonials,
Click
Here to See our current list.
|
|
|
 |
CASE SPECIFICATIONS |
| |
Drive
Bays:
Enternal Connectors:
Demensions / Weight:
-
9.5"(H) x 6.5"(W) x
10.5"(D)
-
10lbs (without drives)
Power Supply:
-
200W Active PFC - 80 Plus Rated
-
Quiet Ball Bearing Fan (x1)
Environmental Requirements:
-
Operation Temprature: 0~60
-
Storage Temperature: -20~70
-
Operation Humidity: 5%~85%,
non-condensing
-
Storage Humidity: 5%~95%
Monitor Indicators:
-
LED and
Audible Alert - Fan
Failure/Over Temperature
Chassis Fan:
-
1x Quiet Ball Bearing Fan
-
Rotational Speed: 2100 RPM
-
Maximum Airflow: 41.33 CFM
-
Noise level: 25.9 dBA
|
|
|
 |
RAID CONTROLLER
SPECIFICATION - (If
Applicable) |
| |
Features:
-
PCIe (x8) 6G SATA/SAS RAID
Controller (Single External
Port)
-
512MB DDR2 ECC Cache
-
Supports RAID 0,1,1E,3,5,6,10
and JBOD
-
Multiple Adapter Support
-
Multiple RAID Selection and
Volume
-
Array Roaming
-
Online RAID level/stripe size
migration
-
Online RAID capacity expansion
-
Instant availability and
background initialization
-
Auto drive insertion/removal
detection and rebuild
-
Greater than 2TB support per
volume
-
Supports S.M.A.R.T., NCQ and OOB
staggered spin up
-
Support (MAID) Massive Array of
Idle Disks (Spin down of disk
when not in use)
Management & Monitor:
-
Browser-based management utility
(GUI)
-
Supports command line interface
(CLI)
-
Hot
Key boot up BIOS RAID Manager
(Windows only)
-
SMTP support for email
notification
-
SNMP support for remote
notification
-
RAID status indication through HDD activity/fault
LED with audible alarm
OS Support
-
Windows 2000, XP, Server 2003, Vista,
Window 7
-
Mac OS X Tiger 10.4.x , Leopard
10.5.X, Snow Leopard 10.6.x and
Lion 10.7.x
-
Linux
-
FreeBSD
-
VMware
-
Solaris 10/11 x86/x86_64
|
|
|
 |
SSD SPECIFICATION -
(If Applicable) |
| |
Features:
-
Standanrd 2.5" SATA III SSD
(Backwards compatible with SATA
I/II interface
-
Up to 520ZMB/s Data Transfer
Rate
-
Built-In ECC (Error Correction
Code)
-
Supports TRIM command to ensure
optimized performance over the
drive's lifespan
-
Supports S.M.A.R.T. function
-
Operating voltage: 5V
-
Operating Temperature: -40 C ~
+85 C
Dimension: 100mm x 70mm x 9.5mm
Weight: 91g
Form Factor: 2.5"
Interface: SATA 6Gb/s (Backwards
compatible to SATA 3Gb/s)
Embedded static wear-leveling
technology for better
reliability and longer lifespan
MTBF: 2,000,000 Hours
Fully Compliant with RoHS, CE
and FCC
|
|
|
|
|
Compatibility List |
|
SATA Hard
Drives |
|
Seagate
Constellation ES |
3 TB |
ST33000650NS |
|
Seagate
Constellation ES |
2 TB |
ST32000644NS, ST2000NM0011 |
|
Seagate
Constellation ES |
1 TB |
ST1000NM0011 |
|
Seagate
Constellation ES |
500 GB |
ST500NM0011 |
|
Hitachi
Ultrastar 7K3000 |
3 TB |
HUA723030ALA640, HUA723030ALA641 |
|
Hitachi
Ultrastar 7K3000 |
2 TB |
HUA723020ALA640, HUA723020ALA641 |
|
WD RE4 |
2 TB |
WD2003FYYS |
|
WD RE4 |
1.5 TB |
WD1503FYYS |
|
WD RE4 |
1 TB |
WD1003FBYX |
|
WD RE4 |
500GB |
WD5003ABYX |
|
WD
VelociRaptor |
600 GB |
WD6000BLHX, WD6000HLHX |
|
WD
VelociRaptor |
450 GB |
WD4500NLHX, WD4500HLHX |
|
WD
VelociRaptor |
300 GB |
WD3000BLHX , WD3000HLHX |
|
WD
VelociRaptor |
150 GB |
WD1500BLHX, WD1500HLHX |
|
SAS
Hard Drives |
|
Seagate |
3 TB |
ST33000650SS |
|
Seagate |
2 TB |
ST32000444SS, ST2000NM0001 |
|
Seagate |
1 TB |
ST31000424SS, ST1000NM0001 |
|
Seagate |
500 GB |
ST500NM0001 |
|
Hitachi
Ultrastar 7K3000 |
3 TB |
HUS723030ALS640, HUS723030ALA641 |
|
Hitachi
Ultrastar 7K3000 |
2 TB |
HUS723020ALS640, HUS723020ALS641 |
|
Solid
State Drives (SSD) |
|
Pretec |
256MB |
P6000 -
SATP6256G-CMM |
|
Pretec |
128MB |
P6000 -
SATP6128G-CMM |
|
RAID Controllers |
|
Areca |
ARC-1212X, 1213-4x, 1221X, 1222X, 1223-8x |
|
LSI |
MegaRAID
SAS 9280-8e, 9285-8e |
|
ATTO |
ExpressSAS R680 |
|
 |
|
|
|
