24Bay 3U Rackmount 12G MiniSAS HD Expander

Model: CR-R24E12G

The new EditPRO-E CR-R24E12G SAS Expander is a 3U 16Bay Rackmount storage solution using the latest 12G SAS expander technology providing up to 48Gb/s or 4800MB/s (Dual-Port) of total data bandwidth, giving you maximum throughput performance and capacity for any data intensive environment. Designed for SATA or SAS HDD or SSD's, the EditPRO-E 12G 24Bay solution supports up to 240TB* per enclosure and a total of up to 256 drives with additional SAS Expander enclosures daisy-chained together. The CR-R24E12G-X model includes a high performance Areca ARC-1883X 12G SAS RAID Controller allows for speeds up to 3000MB/s in read/write performance, doubling existing 6G SAS expander solutions. Designed large capacity HD, UHD, 2K and 4K workflow environments.



True End-to-End 12Gb/s SAS Infrastructure

Delivering Full 12Gb/s SAS storage solution with 24Gb total bandwidth available per port!

DataBolt Technology

Allows 6Gb/s HDD and SSD's take advantage of 12Gb/s SAS performance by aggregating bandwidth of 6Gb/s drives and intelligently buffering data to 12Gb/s speeds.

Redundant Power Supply

1+1 Redundant 700W Low Noise and High Efficiency allows for uninturrupted workflow in the event one of the power units fail. Easy hot-swap power modules for quick replacement.

Up to 10TB Drive Support

Supports all HDD's and SSD's. Excels with 12Gb/s SAS Drives up to 10TB capacities! Providing you with up to 160TB of native storage + Expansion!

3Year Factory Warranty

Replacement of any defective part + Support

Designed and Assembled in the USA

Built, Tested and Supported directly from our California, USA office

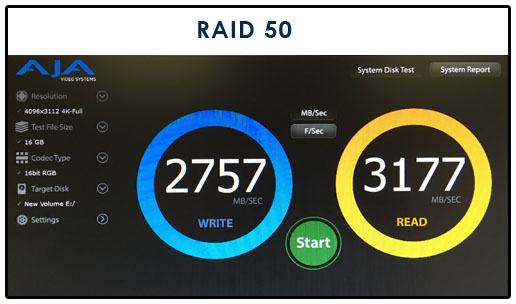

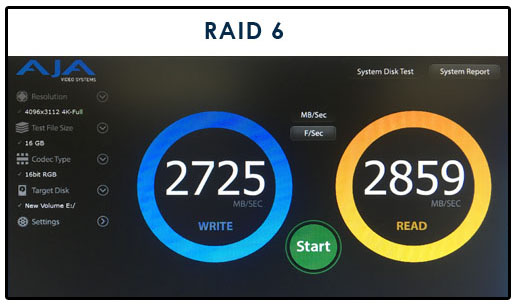

Performance

24x WD 4TB Gold Enterprise Class SATA Drives, ARC-1883X PCIe 3.0 RAID Card, Windows OS



SPECIFICATIONS

Capacity

  • Diskless, 96TB, 144, 192TB and 240TB

  • Supports 24 independent 6Gb/s or 12Gb/s SATA or SAS HDD or SSD

Host Interface

  • 2x 12Gb/s SFF-8644 MiniSAS HD

  • (48Gb/s Bandwidth Per Port)

Host Interface

  • 1x 12Gb/s SFF-8644 MiniSAS HD

  • (48Gb/s Bandwidth Per Port)

Monitor Indicators:

  • LED and Audible Alert - Fan Failure/Over Temperature

  • LCD Display for status indication

Power Supply:

  • 700W Redundant 1+1

  • 80Plus High Efficiency Rated

  • Dual Low-Noise Ball Bearing Fans

Chassis Fan:

  • 3x 120MM Ball Bearing Fan

    • s

  • Rotational Speed: 2100 RPM

  • Maximum Airflow: 41.33 CFM

  • Noise level: 25.9 dBA

Chassis Dimensions and Weight

  • 4U (H) x 430 (W) x 586 (L) mm

Chassis Weight

  • Diskless: 30lbs

  • With Drives: Approximately 70lbs (depending on type of drives)

Environmental Requirements:

  • Operation Temprature: 0~60

  • Storage Temperature: -20~70

  • Operation Humidity: 5%~85%, non-condensing

  • Storage Humidity: 5%~95%



RAID Controller:

(Included only with CR-R24E12G-X model)

  • Dual Core RAID-on_Chip (ROC) 1.2Ghz Processor

  • PCIe 3.0 x8 lane host interface

  • Dual Channel External MiniSAS Ports (2x SFF-8088)

  • 2GB DDR3-1866 Registered ECC Cache

  • Supports RAID 0,1,1E,3,5,6,10,30,50,60 and JBOD

  • Multiple Adapter Support

  • Multiple RAID Selection and Volume

  • Array Roaming

  • Online RAID level/stripe size migration

  • Online RAID capacity expansion

  • Instant availability and background initialization

  • Auto drive insertion/removal detection and rebuild

  • Greater than 2TB support per volume

  • Supports S.M.A.R.T., NCQ and OOB staggered spin up

  • Support (MAID) Massive Array of Idle Disks (Spin down of disk when not in use)

    • Management / Monitor:

      • Browser-based management utility (GUI)

      • Supports command line interface (CLI)

      • Hot Key boot up BIOS RAID Manager (Windows only)

      • SMTP support for email notification

      • SNMP support for remote notification

      • RAID status indication through HDD activity/fault LED with audible alarm



    • PCIe Controller Dimensions

      • 64.4(H) x 169.5 (L) mm



    • Compatibility

      • Mac OSX 10.8x, 10.9+

      • Windows 7,8,10

      • Linux / FreeBSD

      • VMware

      • Solaris Supported

CONTENTS:

  • CineRAID EditPRO-E 4U/24Bay Rackmount Chassis w/ 12G SAS Expander

  • (24x) Hot-Swap Drive Trays

  • (24x) Enterprise Class Hard Drives (When Applicable)

  • Tool-Less Slide Rails

  • (2) 12G MiniSAS HD (SFF-8644 to SFF-8644) External Cables

  • PCIe 3.0 x8 12Gb SAS RAID Controller (Included only with CR-R24E12G-X Model)

  • Power Cable

  • Quick Start Guide

WARRANTY

  • 3 Year Limited Warranty

  • 5 Year Enterprise Hard Drive Warranty

  • Optional 2 Year Additional (5 Year Max) / Advance Replacement Warranty Available

IMAGES: (Click on Image to Enlarge)



Optional Accesories

  • 2 Year Extended Warranty : Extends Warranty for a total of 5 years + 3 Years Advance Replacement : Call

  • ARC-1883X : 12Gb SAS PCIe 3.0 Hardware RAID Controller - ARC-1883X : $799

  • ARC-4883T2 - Thunderbolt 2 to 12Gb SAS RAID Controller Adapter : $1199

  • CB-4444-2M : External MiniSAS HD (SFF-8644) to MiniSAS HD (SFF-8644) 2 Meter Cable : $79

*Raw capacity shown. Actual capacity will vary depending on RAID level, formatting, partioning, computer's operating system and other factors.
