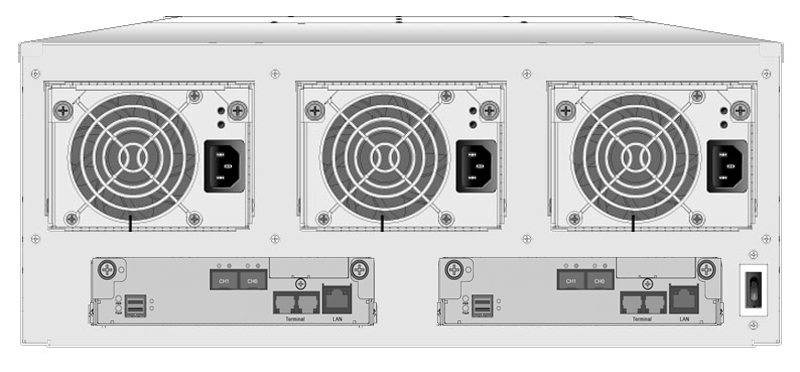

 ARC-9224F Series

 16Gb/s Fibre Channel RAID - 24Bay 4U Rackmount w/ 12Gb/s MiniSAS Expansion





The ARC-9224F Series is a 16Gb/s Fibre Channel to 12Gb/s SAS RAID, supporting single or dual (active-active) RAID controller/s attached directly to SATA/SAS mid-plane using Z-PACK HM-Zd high speed connectors for maximum data throughput.  The 12Gb/s SAS interface supports both 12Gb/s SAS disk drives for data-intensive applications and 6Gb/s SATA drives for low-cost bulk storage of reference data.



The 12Gb/s SAS ports expander for performance and easy expansion. When used with 12Gb/s SAS expanders, the controller can provide up to (256) devices through one or more SAS JBODs, making it an ideal solution for enterprise class storage applications that called for maximum configuration flexibility.





Single Controller / Quad-FC Port

Model: ARC-9224FS-QR3

Dual Controller / Quad-FC Port

Model: ARC-9224FD-QR3



Single Controller / Dual-FC Port

Model: ARC-9224FS-DR3

Dual Controller / Dual-FC Port

Model: ARC-9224FD-DR3



Host Interface • 16Gb/s Fibre-to-SAS
Dual (2) or Quad (4) Ports - 16Gb/s Fibre channel
JBOD Expansion Port One downstream SFF-8644 (4 x 12Gb/s) expansion ports per controller
Max. JBOD per RAID Ctrl Expansion up to 7 JBODs with 512 HDDs limitation
Data Transfer Rate Up to 12Gb/s per port
RAID_on_Chip Dual Core PPC476 1.2 GHz ROC
Cache Protection One 204-pin SO-DIMM socket for 2GB (default) Unbuffered/Registered ECC module
- up to 4GB or 8GB DDR3-1866, 1RX8, or
- up to 4GB or 8GB DDR3-1600, 2RX8
Operating Systems OS Independent
Power Supply • 595W hot swap redundant with PFC
• Supports 100–240VAC input at 47 and 63Hz frequency
Cooling Three Cooling fans housed within each power supply unit
RAID Levels 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
RAID Features • Multiple RAID 0 and RAID 10(1E) support (RAID 00 and RAID 100)
• Automatic drive insertion/removal detection and rebuilding
• Support RAID 1 - Multi Mirroring and Mirrored Pass-Through Disk
• Multiple RAID selection
• Instant availability and background initialization
• Support global and dedicated hot spare
• Automatic drive insertion/removal detection and rebuilding
• Configurable stripe size up to 1MB
• Support HDD firmware update
• Online array roaming
• Online RAID level/stripe size migration
• Online capacity expansion and RAID level migration simultaneously
• Online volume set growth
• SED (self-encrypting drives) function support
• Support for native 4K and 512 byte sector SAS and SATA devices
• Support intelligent power management to save energy and extend service life
• Support NTP protocol synchronize RAID controller clock over the on board Ethernet port
• Multiple pairs SSD/HDD disk clone function
• SSD automatic monitor clone (AMC) support

Management Monitor McRAID Storage Manager
• Web-based GUI management utility
• Graphical-based management utility
• Access terminal menu by telnet via a LAN port
• Field-upgradeable firmware in flash ROM
• Firmware-embedded manager via RS-232 port

Monitors/Notification
• LCD control panel for setup, alarm mute and configuration
• System status indication through LCD, LED and alarm buzzer
• SNMP
• SMTP
• Enclosure management ready (SES over in-band SAS)

Availability and Reliability • Redundant controller operation with active/active and fail-over/fail-back function
• Dual-active RAID controller with cache mirroring through dedicated high speed bus
• Automatic synchronization of firmware version in the dual-active mode
• Multi-path & load-balancing support

Operating Temperature 0 °C to 40 °C
Operating Humidity 10% to 85%, non-condensing
Regulatory Certification CE, FCC
Warranty 3 years
FBM/BBM Support ARC-8008-FBN + ARC-8006-2
or
ARC-8008-FBN + ARC-8008-FB

Form Factor 4U-24 bays
19-inch rackmount chassis
Drive Channel per Enclosure Up to 24 x
3.5”/2.5” HDDs or SSDs
Physical Dimensions
(H x W x D)

• Without handles:
176.4 x 445 x 506 mm
(6.4 x 17.5 x 19.9 in)

• With handles:
176.4 x 482 x 542 mm
(6.4 x 22.9 x 21.3 in)
Weight (W/O Drives) • Single: 34 kg (74 lb)
• Dual: 35 kg (77 lb)
