 12Gb/s SAS 1U Redudant RAID Head - Subsystem






12Gb/s SAS-to_SAS

10Gb/s iSCSI-to-SAS

16Gbs Fibre Channel-to-SAS


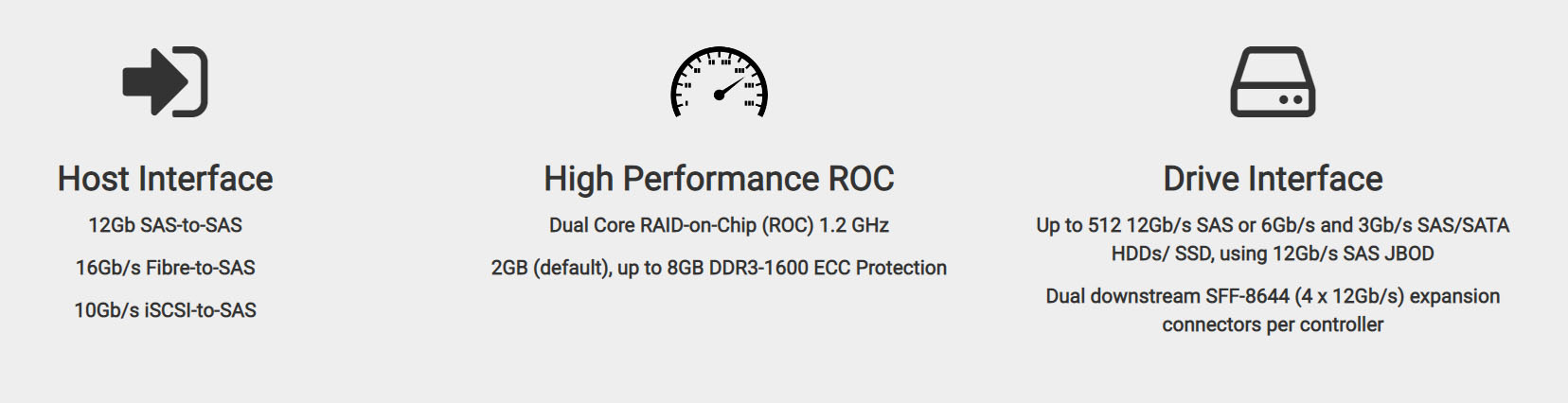

Powered by Areca's Proven RAID controller design, the ARC-9200 is a brand new module RAID head delivering the combination of high performance, high reliability, and data availability required in today’s data-intensive storage environments. The modular design of the RAID head minimizes maintenance effort, makes installation simpler and easy leverages different JBOD to provide an affordable, highly capable and scalable storage.

With either 8 x 12Gb/s SAS ports, 2/4 x 16Gb/s fibre channels or 2 x 10Gb/s iSCSI channel host options, the 1U RAID head is an ideal solution to adapt a wide range of applications. Available in single or redundant modular architectures, the RAID head can meet the needs of the professional who needs high-performance versatile RAID storage.

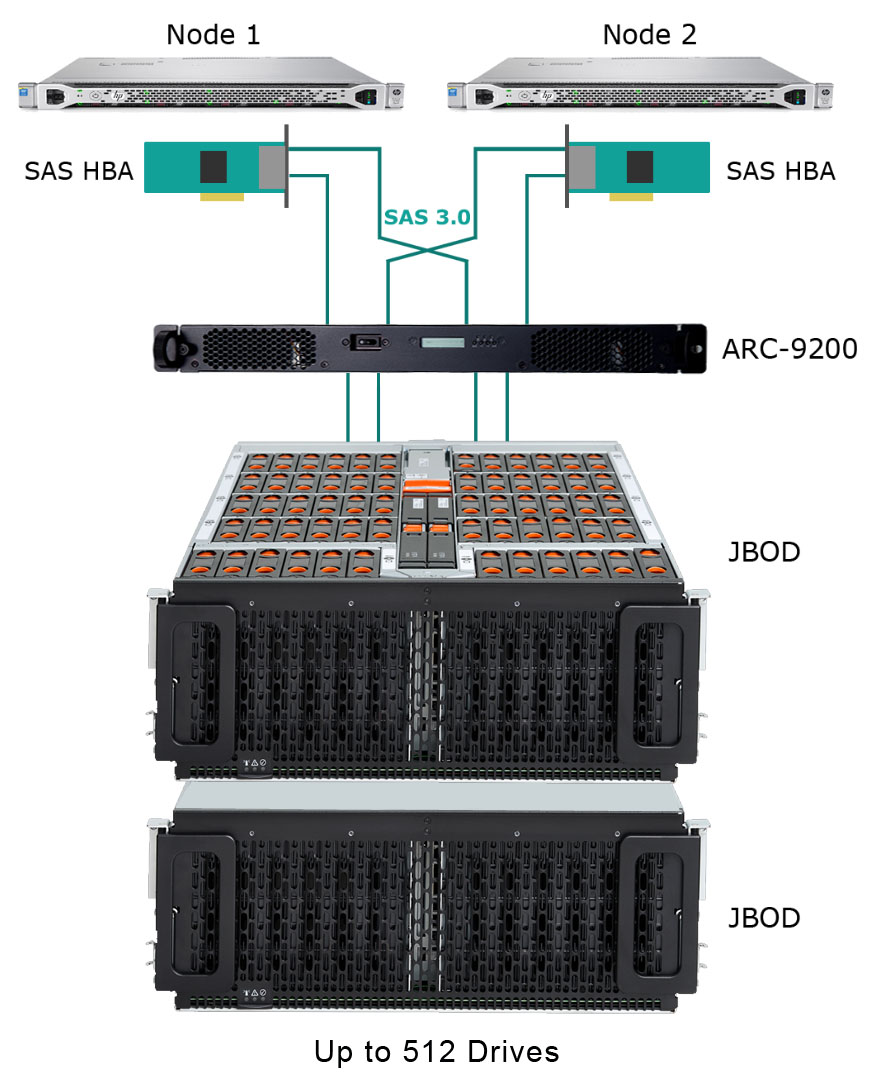

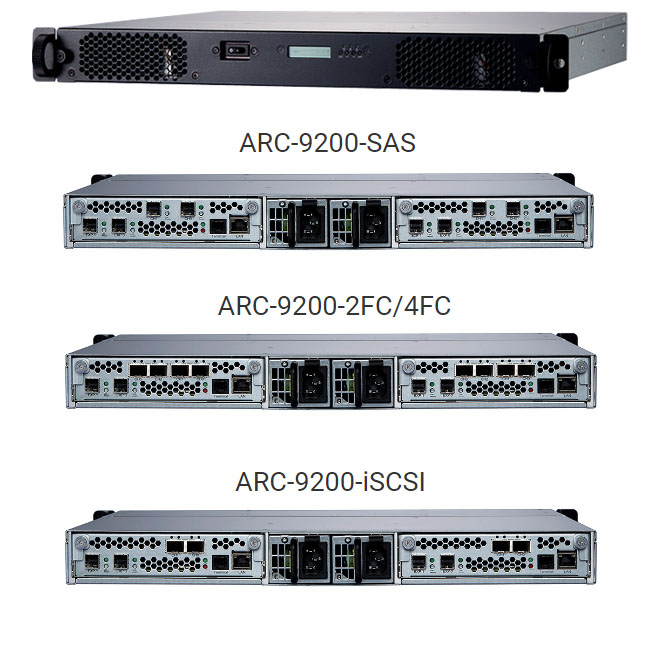

 ARC-9200 Series SAS 1U_RAID Head



Form Factor 1U, 19-inch rackmount chassis
Host Interface • SAS-to-SAS
2 x 12Gb/s SAS Ports
• Fibre-to-SAS
2/4 x 16Gb/s Fibre channels
• iSCSI-to-SAS
2 x 10Gb/s iSCSI channels
JBOD Expansion Port Dual downstream SFF-8644 (4 x 12Gb/s) expansion ports per controller
Max. Drives per RAID Ctrl Up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSD, using 12Gb/s SAS JBOD
Data Transfer Rate Up to 12Gb/s per port
RAID_on_Chip Dual Core PPC476 1.2 GHz ROC
Cache Protection One 204-pin SO-DIMM socket for 2GB (default) DDR3-1600, 1RX8/2RX8, ECC module
- up to 4GB or 8GB DDR3-1600, 1RX8/2RX8, Unbuffered/Registered ECC module
Operating Systems OS Independent
Power Supply • Dual 200W hot swap and redundant with PFC, N+1 design
• AC voltage: 110V@40A, 230V@80A for input inrush current with PFC (auto-switching)
• Supports 90-264 VAC input at 47-63 Hz frequency
FBM/BBM Support Yes (optional): ARC-1883-BAT/ARC-1883-CAP/ARC-6120BAT021-7
Physical Dimensions
(H x W x D)
• Without handles: 43.5 x 445 x 400 mm (1.7 x 17.5 x 15.7 in)
• With handles: 43.5 x 482 x 436 mm (1.7 x 22.9 x 17.1 in)
RAID Features • RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
• Multiple RAID 0 and RAID 10(1E) support (RAID 00 and RAID 100)
• Automatic drive failover and detection and rebuild using multiple Global, Dedicated or Enclosure hot- spare drives
• Multiple pairs SSD/HDD disk clone function
• SSD automatic monitor clone (AMC) support
• SED (Self-encrypting drives) function support
• Support for native 4K and 512 byte sector devices
• Support HDD firmware update
• Hot-swap and redundant components for increasing availability
RAID Management Software • Flashable firmware via RS-232 and LAN port
• Push Buttons and LCD for setup and status
• Firmware-embedded manager via RS-232 port
• Browser-based RAID manager, SMTP manager, SNMP agent and Telnet function
• API with sample and functional code
• ArcCLI (command-line interface)
• ArcSAP monitor utility easily manage multiple RAID units
Availability and Reliability • Redundant controller operation with active/active and fail-over/fail-back function
• Dual-active RAID controller with cache mirroring through dedicated high speed bus
• Automatic synchronization of firmware version in the dual-active mode
• Multi-path & load-balancing support
Operating Temperature 0 °C to 40 °C
Operating Humidity 10% to 80%, non-condensing
Regulatory Certification CE, FCC
Warranty 3 years
