USB-C Dock

Expanding USB-C and Thunderbolt 3



Part# APS-DKPD01



Un-Limit Yourself

The Pioneer USB Type-C (USB-C) Docking with Power Delivery is the perfect complement to your Type-C laptop and tablet. This Dock allows you to plug in a single cable to connect multiple devices, deliver to 4K Ultra HD video, simultaneously offer high-speed data transfer and charges your Type-C device.



Why do I need this USB-C Dock

Connect to you monitors, keyboard, mouse, phones, game controllers, digital projectors and many other USB peripherals while you charge your laptop at the same time.

Specifications

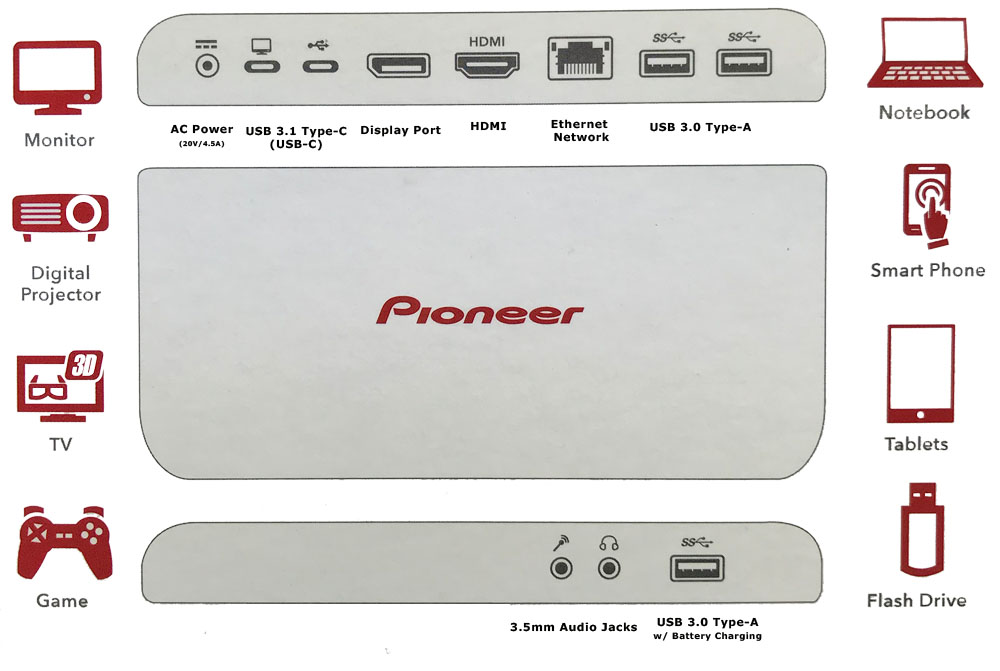

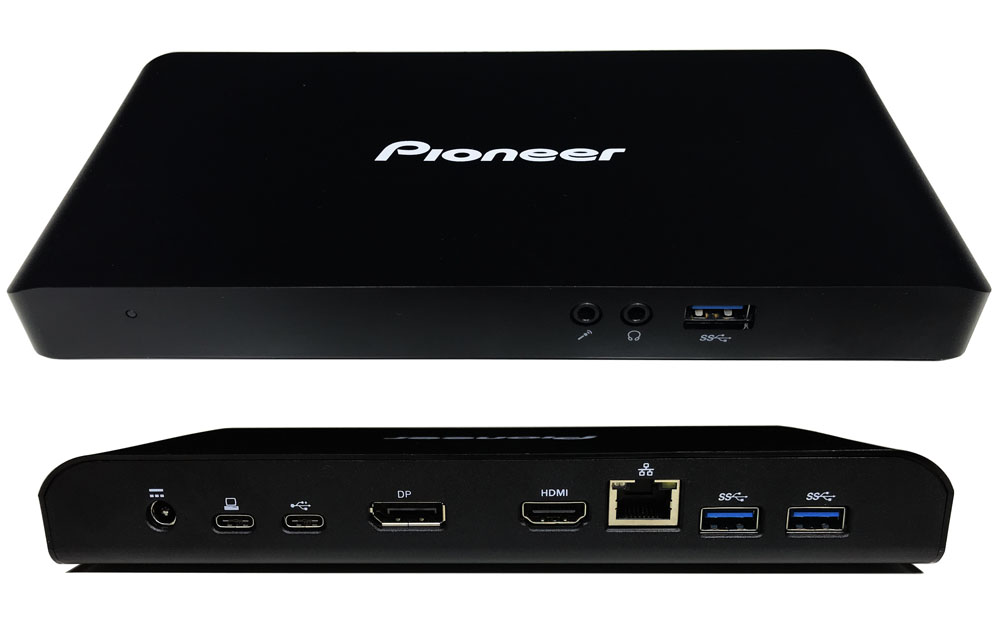

Ports

Front:



3.5mm Microphone Port

3.5mm Headset Port

USB 3.0 Port (Fast Charge)





Rear:





DC Power Input (20V / 4.5A)

USB Type-C Host Port (Data, DP Alt Mode, USB Power Delivery)

USB Type-C Downstream Port (Data Only)

Display Port w/ MST (Video 1)

HDMI Port (Video 2)

Ethernet Port (Gigabit - RJ45)

USB 3.0 Port x2



Demensions: 210mm x 91mm 28.16mm

Weight: 260g

Included in Box:

1x USB-C Dock Unit

1x USB-C to USB-C Cable

x1 (20V/4.5A, 90W) Power Adapter w/ 5V/3A (15W)

with 12V/3A (36W) and 20V/1.8A (36W), 20V 3A (60W) cable





UPC:







Warranty & Support



1 Year Standard Warranty



Tech Support : Support@CineRAID.com  :  (909) 606-1111 x113



Pre-Sales / Sales : Sales@CineRAID.com  :  (909) 606-1111





Pricing : $169
