24 Bay 3U
SAS RAID Subsystem
High
Performance - Enterprise Class SAS Storage |
|
Model: CR-R724SS
(Single Controller)
Model: CR-R724SD
(Dual Controller) |
|
 |
|
Affordable, Scalable and
Fast SAS Storage for
2K/4K Video Editing,
Grading and VFX
Low-Noise Redundant
Cooling and Power make
this an ideal fit for
quiet working
environments
Delivers up to 1500+MB/s
sustained throughput for
fast un-interrupted
professional workflows
The CineRAID 700S offers
best in class
performance featuring
the latest Dual Core IO
Processor and 4GB DDR3
1333 DDR3 ECC for
handling the most
demanding applications.
High capacity +
expansion, with 16
hot-swappable SAS/SATA
HDD or SSD in a 19"
3U rackmount with expansion
port to connect
additional units up to
122 drives in total with
additional units. OS
independent with
firmware-embedded web
browser-based RAID
manager allows local or
remote management and
configuration. SMTP
manager monitors all
system events and user
notification
automatically. SNMP
agent allows remote to
monitor events via LAN
with no SNMP agent
required. Innovative
modular architecture
design with menu-driven
front panel display.
80-Plus Certified
Redundant Power Supply
delivering more than 80%
energy efficiency. All
backed by our 3 year
hardware warranty and
dedicated support.
|
|
Click on Image to
Enlarge |
|
|
|
|
 |
Low-Noise Redundant Cooling
Design
Dual Hot-Swap Dual Fan Module
speeds up the air flow by
channeling through focused
points in the chassis and
efficiently extract heat
generated from the drives.
reduce overall system
temperature to help extend the
life and keep all drives running
at peak working conditions.
|
|
|
|
 |
Low-Noise Redundant Power
80-Plus Certified Redundant
Power delivering more than 80%
energy efficiency w/ Low-Noise
Dual Fans to deliver
fault-tolerant,
high-availability power even
when a single module fails,
eliminating single point of
failure. |
|
|
|
 |

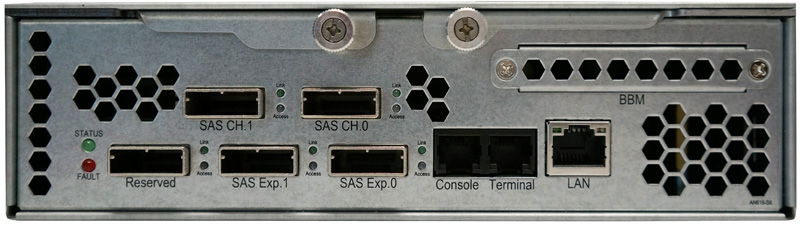

Dual 6Gb/s SAS Host Ports
Best in class throughput power.
The 6Gb/s SAS port is the ideal
fit for bandwidth demanding
applications that require
superior workflow performance in
HD, 2K, 4K Video Editing,
Grading or VFX.
Dual Expansion 6Gb/s SAS Ports
Pay as you grow scalability, No
waste on what you don't need or
worries about what you will
need. Dual 6Gb/s SAS expansion
ports allow you to daisy-chain
additional JBOD enclosures up to
122 drives total.
Ethernet Port
Pay as you grow scalability, No
waste on what you don't need or
worries about what you will
need. Dual 6Gb/s SAS expansion
ports allow you to daisy-chain
additional JBOD enclosures.
|
|
|
| |
|
| |
|
| |
|
|
|
|
|
|
|
|
Highlights |
-
Dual Core
800 Mhz RAID-On-Chip Storage
Processor
-
Advanced PCI-Express 3.0 bus
architecture
-
Supports up to 8GB DDR3 ECC
registered - DIMM socket (4GB
Included by default)
-
Hardware RAID 6 engine to support
extreme performance RAID 6 function
-
Support Global Hot Spare and local
Hot Spare disk
-
Optional Battery Backup Module
preserves cache contents during
power failure
-
NVRAM and Real Time clock support,
for configuration and transaction
log
-
1x down-stream Mini-SAS supported,
It can connect more SAS JBODs for
capacity expansion
|
|
Technical Specifications |
|
RAID Architecture
-
Dual Core
800Mhz RAID-On-Chip Storage
Processor
-
4GB DDR3 ECC Registered on one
DIMM socket (Optional 8GB Available)
-
Advanced PCI Express 3.0 bus
architecture
-
NVRAM and Real Time Clock supported
RAID Operation
-
RAID levels: 0, 1 1E, 3, 5, 6, 50,
60 & JBOD
-
Multiple RAID selection
-
Online RAID level/stripe size
migration
-
Online Array roaming
-
Support Global Hot Spare and
dedicated Hot Spare disk
-
Online capacity expansion and RAID
level migration simultaneously
-
Instant availability and background
initialization
-
Uniquely features "Drive Spin Down"
saving more power consumption
-
Automatically starts bad
Blocks-Scrubbing by "Scheduled
Volume Checking"
-
Max 122 Physical drive support (with
additional SAS Expander JBODs)
-
Online Volume set growth
-
Max 128 LUNs (Volume Set) per
controller
-
Support S.M.A.R.T., NCQ & OOB
Staggered Spin-UP capable drives
-
Automatic drive insertion / removal
detection and rebuilding
Host Interface
-
Two MiniSAS (SFF-8088) connectors -
6Gb/s x4 links per controller
Drive Interface
-
16x 6Gb/s SAS/SATA channel - Through
Backplane
-
Lockable disk carrier can support
both 2.5" or 3.5" drives
-
1x MiniSAS (SFF-8088) port for
expansion
RAID Management
-
Field-Upgradeable firmware in flash
ROM
-
Firmware-embedded SMTP manager
monitors all system events and user
can select either single or multiple
user alerts to be sent via email
-
Firmware embedded Web Browser based
RAID manager via Ethernet port
Monitors / Indicators
-
LCD control panel for setup, alarm
mute and configuration
-
System status indication through
LCD, LED and alarm buzzer
-
All system events can be sent to
multiple user alerts via email
-
Firmware-embedded SNMP agent permits
the remote to monitor all events
through LAN with no SNMP agent
required.
Environmental / Physical
Cooling
-
Two redundant, hot-swappable cooling
modules with self-regulating speeds
and wide range airflow design
-
Controller by RAID controller
automatically maintaining optimal
ambient temperature
Electrical
-
Redundant Dual 500W power supplies
with PFC and energy-efficient
80Plus, Load-Sharing type, hot
swappable and cable-less design
-
AC Voltage 110-230 VAC/AC Frequency
50-60Hz
Temperature
-
Operating temperature: 5 - 35 degree
C
-
Non-Operating temperature: -40 - 60
degree C
-
Relative Humidity: 20% - 80%
non-condensing
Size & Weight
|
|
|
|
Price List |
|
Model |
Description |
MSRP |
|
CR-R716SS |
16Bay 3U Rack Dual 6G SAS-to-SAS RAID Unit
(Single Controller) |
Call/Email For
Pricing |
|
CR-R716SD |
16Bay 3U Rack Dual 6G SAS-to-SAS RAID Unit
(Dual Controller) |
|
CR-R716SS-16TB |
16Bay 3U Rack Dual 6G SAS-to-SAS RAID Unit
(Single Controller) w/ 16x 1TB Enterprise
Hard Drives |
|
CR-R716SS-32TB |
16Bay 3U Rack Dual 6g SAS-to-SAS RAID Unit
(Single Controller) w/ 16x 2TB Enterprise
Hard Drives |
|
CR-R716SS-48TB |
16Bay 3U Rack Dual 6G SAS-to-SAS RAID Unit
(Single Controller) w/ 16x 3TB Enterprise
Hard Drives |
|
CR-R716SS-64TB |
16Bay 3U Rack Dual 6G SAS-to-SAS RAID Unit
(Single Controller) w/ 16x 4TB Enterprise
Hard Drives |
|
CR-R716SD-16TB |
16Bay 3U Rack Dual 6G SAS-to-SAS RAID Unit
(Dual Controller) w/ 16x 1TB Enterprise Hard
Drives |
|
CR-R716SD-32TB |
16Bay 3U Rack Dual 6G SAS-to-SAS RAID Unit
(Dual Controller) w/ 16x 2TB Enterprise Hard
Drives |
|
CR-R716SD-48TB |
16Bay 3U Rack Dual 6G SAS-to-SAS RAID Unit
(Dual Controller) w/ 16x 3TB Enterprise Hard
Drives |
|
CR-R716SD-64TB |
16Bay 3U Rack Dual 6G SAS-to-SAS RAID Unit
(Dual Controller) w/ 16x 3TB Enterprise Hard
Drives |
3 Year Warranty Standard - An Optional
Advance Replacement is also Available.
|
|
|
|
C O M P A T I B L E H A R D
D R I V E L I S T
Note: In Dual Controller configurations,
only SAS drives are compatible |
|
SATA Hard
Drives |
|
 |
Seagate
Enterprise ES.3 |
4TB |
ST4000NM0033 |
|
Seagate
Constellation |
3 TB |
ST3000NM0033 /
ST33000650NS |
|
Seagate
Constellation |
2 TB |
ST2000NM0033 /
ST32000644NS / ST2000NM0011 |
|
Seagate
Constellation |
1 TB |
ST1000NM0033 / ST1000NM0023 /
ST1000NM0011 |
|
Seagate
Constellation |
500 GB |
ST500NM0011 |
|
 |
Hitachi
Ultrastar 7K4000 |
4 TB |
HUS724040ALE640 / HUS724040ALA640 |
|
Hitachi
Ultrastar 7K4000 |
3 TB |
HUS724030ALE640 / HUS724030ALA640 |
|
Hitachi
Ultrastar 7K4000 |
2 TB |
HUS724020ALE640 / HUS724020ALA640 |
|
Hitachi
Ultrastar 7K3000 |
3 TB |
HUA723030ALA640 / HUA723030ALA641 |
|
Hitachi
Ultrastar 7K3000 |
2 TB |
HUA723020ALA640 / HUA723020ALA641 |
|
 |
WD RE |
4TB |
WD4000FYYZ |
|
WD RE |
3TB |
WD3000FYYZ |
|
WD RE |
2TB |
WD2000FYYZ / WD2003FYYS |
|
WD RE |
1TB |
WD1003FBYX |
|
WD RE |
500 GB |
WD5003ABYX |
|
WD RE |
250 GB |
WD2503ABYX |
|
WD RE4 |
2 TB |
WD2003FYYS |
|
WD RE4 |
1.5 TB |
WD1503FYYS |
|
WD RE4 |
1 TB |
WD1003FBYX |
|
WD RE4 |
500GB |
WD5003ABYX |
|
WD
VelociRaptor |
1TB |
WD1000DHTZ |
|
WD
VelociRaptor |
600 GB |
WD6000BLHX / WD6000HLHX |
|
WD
VelociRaptor |
500 GB |
WD5000HHTZ |
|
WD VelociRaptor |
450 GB |
WD4500NLHX / WD4500HLHX |
|
WD
VelociRaptor |
300 GB |
WD3000BLHX / WD3000HLHX |
|
WD
VelociRaptor |
250 GB |
WD2500HHTZ |
|
WD
VelociRaptor |
150 GB |
WD1500BLHX / WD1500HLHX |
|
SAS
Hard Drives |
|
|
Seagate Constellation |
4TB |
ST4000NM0023 |
|
Seagate Constellation |
3 TB |
ST3000NM0023 / ST3000NC002 / ST3000NC000 /
ST33000650SS |
|
Seagate
Constellation |
2 TB |
ST2000NM0023 / ST2000NC001 / ST2000NC000 /
ST32000444SS / ST2000NM0001 |
|
Seagate
Constellation |
1 TB |
ST1000NM0023 / ST1000NC001 / ST1000NC000 /
ST31000424SS / ST1000NM0001 |
|
Seagate
Constellation |
500 GB |
ST500NM0001 |
|
Seagate
Constellation |
500 GB |
ST500NM0001 |
|
|
Hitachi
Ultrastar 7K3000 |
3 TB |
HUS723030ALS640 / HUS723030ALA641 |
|
Hitachi
Ultrastar 7K3000 |
2 TB |
HUS723020ALS640 / HUS723020ALS641 |
|
|
WD RE |
4TB |
WD4001FYYG |
|
WD RE |
3TB |
WD3001FYYG |
|
WD RE |
2TB |
WD2001FYYG |
|
WD RE |
1TB |
WD1001FYYG |
|
|
